HBLT-A2 capacitive liquid level transmitters are used to measure liquid levels in refrigerant vessels. The sensor transmits a current signal from 4 to 20 mA (4 mA when the transmitter does not register liquid - and 20 mA when the entire transmitter is surrounded by liquid).
The difference between the new HBLT-A2 and the HBLT-A1 is the electronic head. We have used the electronic head from our HBLC sensor, which gives more opportunities in the PC tool for configuration with 3 parameters to set up the sensor.
HBLT-A2 has a digital display instead of the bar graph known from HBLT-A1 and HBLT-A2 is an intelligent sensor with a built-in microprocessor. It emits a 4-20 mA signal, which is proportional to the sensor’s set range of measurement. Apart from the 4-20 mA signal the sensor also has a built-in controller. The controller can be set-up with all the parameters necessary for controlling a modulating motor valve. The sensor can be delivered with a cable for direct supply to and control of motor valves.
HBLT-A2 provides new possibilities but has the same price as HBLT-A1.
![]() |
Digital display |
![]() |
Controller built inside |
![]() |
Advanced setting for controlling modulating valve |
![]() |
3 parameters to set up the sensor |
![]() |
Easy diagnostics |
![]() |
The HBLT-A2 is a perfect solution under turbulent conditions like marine applications |
![]() |
Split design which makes it possible to make easy installation and diagnostics The electronic part can be easily disconnected by loosening the threaded nut / union nut |
![]() |
Proven and reliable design with process signal output of 4-20 mA |
![]() |
Designed for the industrial refrigeration industry - max pressure up to 100 bar & high protection class |
SPECIFICATIONS
Power supply | |
---|---|
Voltage | 24 AC/DC + 10% |
Plug connection | M12, 5 pins - DIN 0627 |
Output | |
Analog output | 4-20 mA |
Environmental conditions | |
Ambient temperature | -30...+50°C |
Refrigerant temperature | -60...+80°C |
Max. pressure | 100 bar |
Protection class | IP65 |
Vibrations | IEC 68-2-6 (4g) |

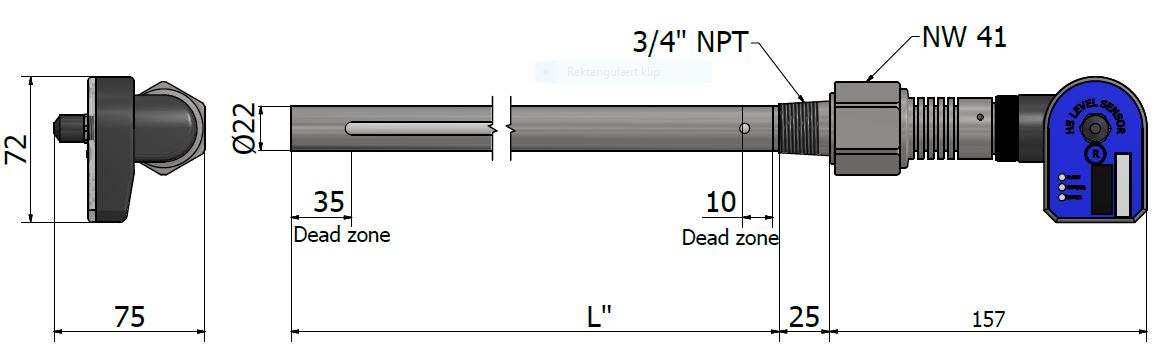

Mechanical specifications | |
Thread connections | 3/4” NPT / BSP |
Material - mechanical parts | AISI 304 / PTFE |
Material - electronic parts | Nylon 6 (PA) |
House type | Angle |
Approvals | |
EMC test | EN 61000-2 |
Indication | |
LED indication | Green, yellow, and red |
Use of HBLT-A2
When using a level sensor for measuring Ammonia in a compact plate and shell heat exchanger or other systems with turbulent conditions, we have new recommendation based on recent experience:
For Stand-pipes with stable conditions (smooth changes in the level):
• Use a HBLT-Wire or a HBLT-A2 or HBLT-A1 rod-style sensor.
For Stand-pipes with turbulent conditions (a lot of turbulence, cooking, foaming, liquid from the top):
• Use a HBLT-A2 or HBLT-A1 rod-style sensor, or
• Use only a HBLT-Wire sensor when you have it mounted in an inner guide-tube of e.g. DN25 as
illustrated. The guide-tube will dampen the turbulence and the foaming and you will have a good
measurement.
• If HBLT-Wire sensor is already mounted under these conditions WITHOUT a guide-tube, do
eventually set the filter time function between 60-120 seconds to dampen the signal from the
turbulent conditions.
For tank/drum installation:
• Use a HBLT-A2 or HBLT-A1 rod-style sensor, or
• Use only a HBLT-Wire sensor when you have it mounted in an inner guide-tube of e.g. DN25 as
illustrated. The guide-tube will dampen the level and the foaming and you will have a good
measurement.
• If HBLT-Wire sensor is already mounted under these conditions WITHOUT a guide-tube,
do eventually set the filter time function between 60-120 seconds to dampen the signal from the
turbulent conditions.

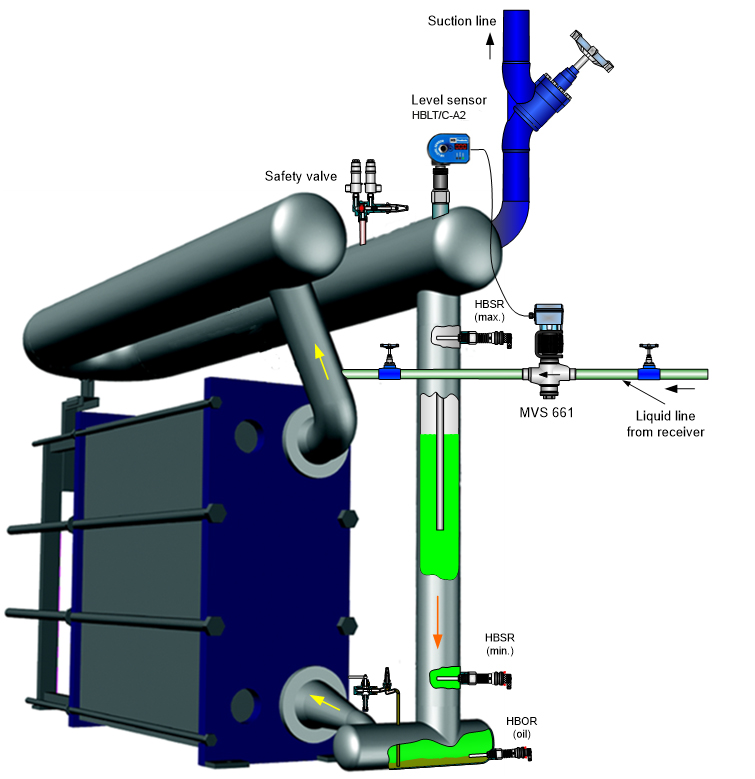

For Alpha Laval U-turn evaporator:
• Use a HBLT-A2 or HBLT-A1 rod-style sensor.

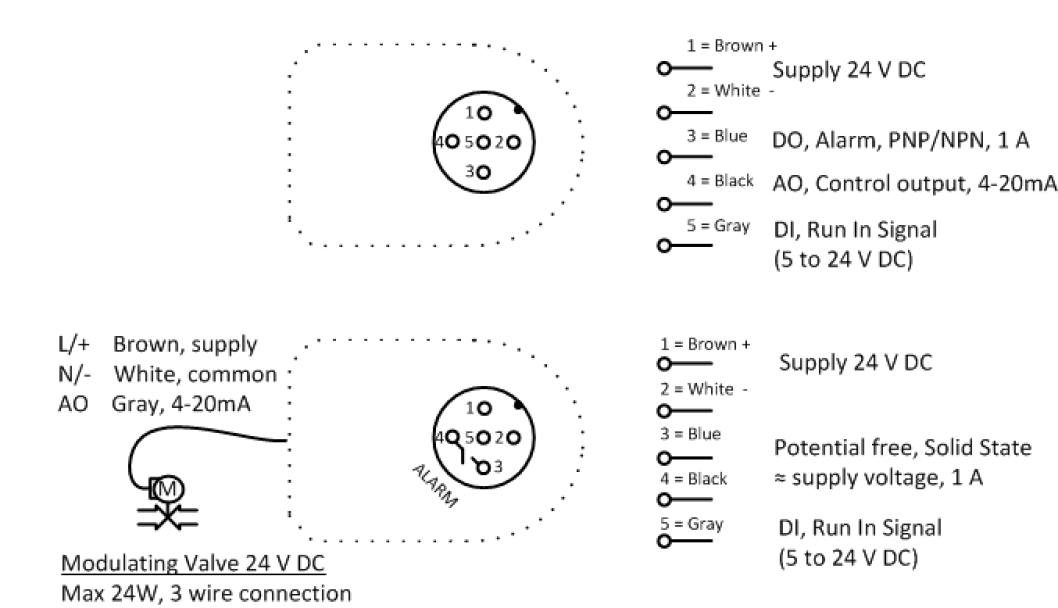

HBLT/C-A2, here’s a cable connection directly to a modulating fluid valve
such as Siemens MVS661, this will save installations cost because there is built
in a level controller in the sensor head.
Length / thread | Valve type | Ordering code with LED |
---|---|---|
280 mm / 1" BSP | HBLT-A2-2.8 | |
500 mm / 1" BSP | HBLT-A2-5 | |
800 mm / 1" BSP | HBLT-A2-8 | |
1000 mm / 1" BSP | HBLT-A2-10 | |
1200 mm / 1" BSP | HBLT-A2-12 | |
1500 mm / 1" BSP | HBLT-A2-15 | |
1700 mm / 1" BSP | HBLT-A2-17 | |
2200 mm / 1" BSP | HBLT-A2-22 | |
3000 mm / 1" BSP | HBLT-A2-30 | |
6" / 3/4” NPT | HBLT-A2-6U | |
8" / 3/4” NPT | HBLT-A2-8U | |
12" / 3/4” NPT | HBLT-A2-12U | |
15.3" / 3/4” NPT | HBLT-A2-15.3U | |
19.2" / 3/4” NPT | HBLT-A2-19.2U | |
23.1" / 3/4” NPT | HBLT-A2-23.1U | |
30" / 3/4” NPT | HBLT-A2-30U | |
35" / 3/4” NPT | HBLT-A2-35U | |
45" / 3/4” NPT | HBLT-A2-45U | |
55" / 3/4” NPT | HBLT-A2-55U | |
65" / 3/4” NPT | HBLT-A2-65U | |
85" / 3/4” NPT | HBLT-A2-85U | |
105" / 3/4” NPT | HBLT-A2-105U | |
120" / 3/4” NPT | HBLT-A2-120U | |
Electronic part for HBLT-A2 | HBLT-A2-EL | |
280 mm / 1" BSP | Modulating | HBLT/C-A2-2.8 |
500 mm / 1" BSP | Modulating | HBLT/C-A2-5 |
800 mm / 1" BSP | Modulating | HBLT/C-A2-8 |
1000 mm / 1" BSP | Modulating | HBLT/C-A2-10 |
1200 mm / 1" BSP | Modulating | HBLT/C-A2-12 |
1500 mm / 1" BSP | Modulating | HBLT/C-A2-15 |
1700 mm / 1" BSP | Modulating | HBLT/C-A2-17 |
2200 mm / 1" BSP | Modulating | HBLT/C-A2-22 |
3000 mm / 1" BSP | Modulating | HBLT/C-A2-30 |
6" / 3/4” NPT | Modulating | HBLT/C-A2-6U |
8" / 3/4” NPT | Modulating | HBLT/C-A2-8U |
12" / 3/4” NPT | Modulating | HBLT/C-A2-12U |
15.3" / 3/4” NPT | Modulating | HBLT/C-A2-15.3U |
19.2" / 3/4” NPT | Modulating | HBLT/C-A2-19.2U |
23.1" / 3/4” NPT | Modulating | HBLT/C-A2-23.1U |
30" / 3/4” NPT | Modulating | HBLT/C-A2-30U |
35" / 3/4” NPT | Modulating | HBLT/C-A2-35U |
45" / 3/4” NPT | Modulating | HBLT/C-A2-45U |
55" / 3/4” NPT | Modulating | HBLT/C-A2-55U |
65" / 3/4” NPT | Modulating | HBLT/C-A2-65U |
85" / 3/4” NPT | Modulating | HBLT/C-A2-85U |
105" / 3/4” NPT | Modulating | HBLT/C-A2-105U |
120" / 3/4” NPT | Modulating | HBLT/C-A2-120U |
Electronic part for HBLT/C-A2 | Modulating | HBLT/C-A2-EL |
280 mm / 1" BSP | Stepper | HBLT/S-A2-2.8 |
500 mm / 1" BSP | Stepper | HBLT/S-A2-5 |
800 mm / 1" BSP | Stepper | HBLT/S-A2-8 |
1000 mm / 1" BSP | Stepper | HBLT/S-A2-10 |
1200 mm / 1" BSP | Stepper | HBLT/S-A2-12 |
1500 mm / 1" BSP | Stepper | HBLT/S-A2-15 |
1700 mm / 1" BSP | Stepper | HBLT/S-A2-17 |
2200 mm / 1" BSP | Stepper | HBLT/S-A2-22 |
6" / 3/4” NPT | Stepper | HBLT/S-A2-6U |
8" / 3/4” NPT | Stepper | HBLT/S-A2-8U |
12" / 3/4” NPT | Stepper | HBLT/S-A2-12U |
15.3" / 3/4” NPT | Stepper | HBLT/S-A2-15.3U |
19.2" / 3/4” NPT | Stepper | HBLT/S-A2-19.2U |
23.1" / 3/4” NPT | Stepper | HBLT/S-A2-23.1U |
30" / 3/4” NPT | Stepper | HBLT/S-A2-30U |
35" / 3/4” NPT | Stepper | HBLT/S-A2-35U |
45" / 3/4” NPT | Stepper | HBLT/S-A2-45U |
55" / 3/4” NPT | Stepper | HBLT/S-A2-55U |
65" / 3/4” NPT | Stepper | HBLT/S-A2-65U |
85" / 3/4” NPT | Stepper | HBLT/S-A2-85U |
105" / 3/4” NPT | Stepper | HBLT/S-A2-105U |
120" / 3/4” NPT | Stepper | HBLT/S-A2-120U |
Electronic part for HBLT/S-A2 | Stepper | HBLT/S-A2-EL |
