INTRODUCTION

HBCP is a new revolutionary, patent-pending sensor technology and it is the first sensor in the world capable of measuring the condition of gas and liquid refrigerant in a refrigeration system. HBCP is used for detecting gas quality at the intake found on refrigeration compressors. The sensors thereby ensure that liquid refrigerant does not enter the compressor, causing damage to the moving parts.

The sensor has a high sensitivity and even detects small liquid droplets before they become critical to the compressor. The sensor has a uniquely low reaction time, and thereby ensures that the compressor is not damaged. In the event of liquid hammer, an instantaneous alarm is sent to the compressor control, which must signal an emergency stop to the compressor. The sensor measures the total gas and liquid capacity, which is displayed in pF.

PRODUCT FEATURES

  • The sensor protects the compressor against damage in the event of liquid hammer from the system.
  • Setting up the sensor using a PC allows for adjustments to match the system and the compressor.
  • Instantaneous reaction without delays.

APPLICATIONS

SPECIFICATIONS

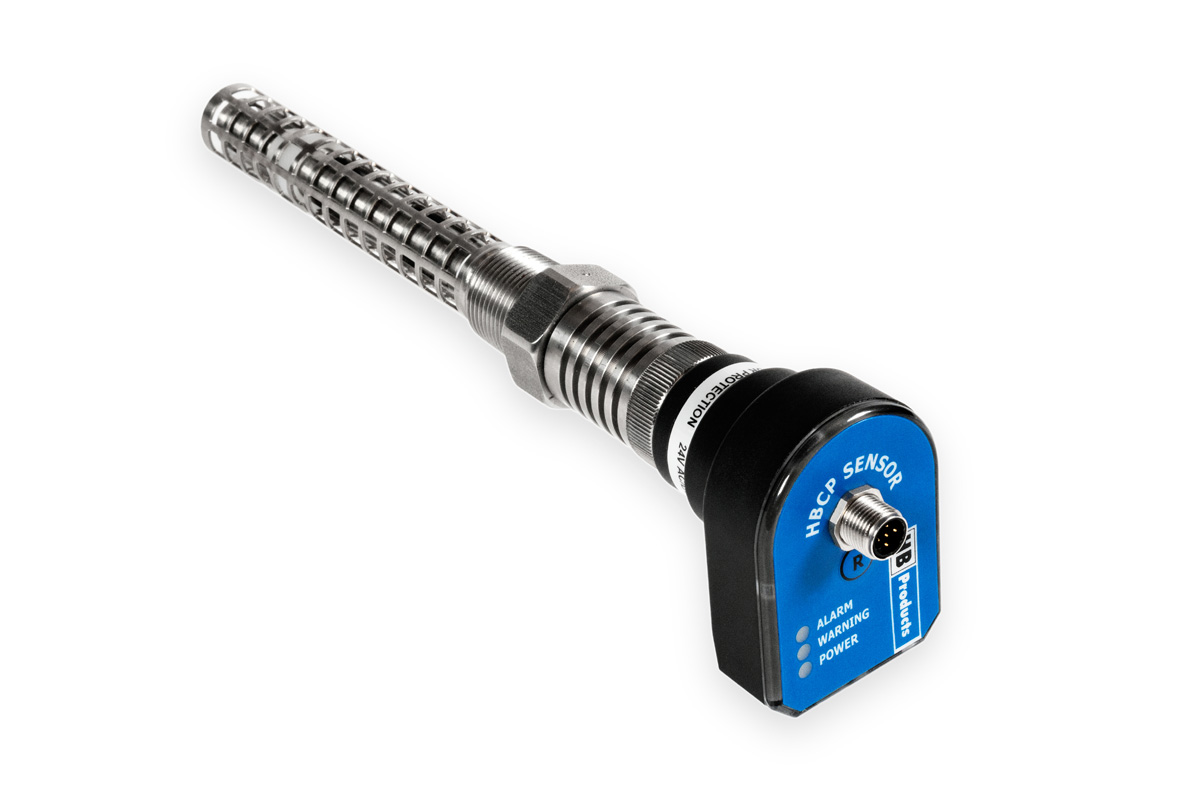

HBCP-Rod style

Supply



Mechanical Specifications



Voltage

24 V DC + 10%

Thread connection

3/4” NPT and 1" BSPP

Power usage

Max 30 mA

Material of the parts coming into contact with liquid

AISI 304

Plug connection

M12, 5 pins

Material of the electronic parts

GF BLK, Nylon 6 (PA)

Udgang



Output

See drawing

Transsistor PNP

NO or NC (programmable)

Type

Front housing

Alarm indication for gas/liquid condition

Warning / Alarm




Configuration & indication



Installation conditions



Configuration

With the PC tool

Ambient temperature

-30°C...+50°C

LED Indication

LED (green, yellow, and red)

Refrigerant temperature

-60°C...+80°C

Approvals



Max. pressure

100 bar

EMC test

EN 61000-2

Waterproof rating

IP65



Vibrations

IEC 68-2-6 (4g)



Cable (included)





5m cable with M12 plug

HBxC-M12/5



Cable specifications

PUR -5 x 0,34mm2
