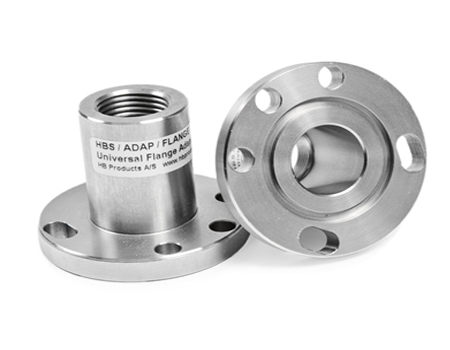

HBS/ADAP/xxx is designed for mounting on compressors where sight glass is normally placed. Both HBSO1 and HBOC can be mounted on this.
A "plug and play" solution which can be direct mounted on all major compressors.
 |
To be mounted directly on compressor housing where sight glass is normally placed. |
|
Manufactured in stainless steel AISI 304 |
|
Sealed by O-ring ø32x2,50 |
|
With internal thread ½" NPT |
SPECIFICATIONS
| Mechanical specifications | |
|---|---|
| Material | AISI304 |

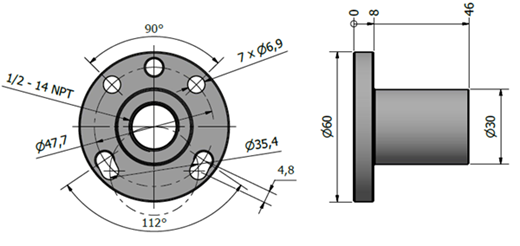

| Dimensions | 60 x 60 x 46 mm |
| Weight | 240 g |
| Thread connection | 1/2" NPT |
| Description | Thread type | Ordering code |
|---|---|---|
| Universal flange adaptor 3+4 hole for sightglass replacement | 1/2" NPT | HBS/ADAP/FLANGE/UNI |
