INTRODUCTION

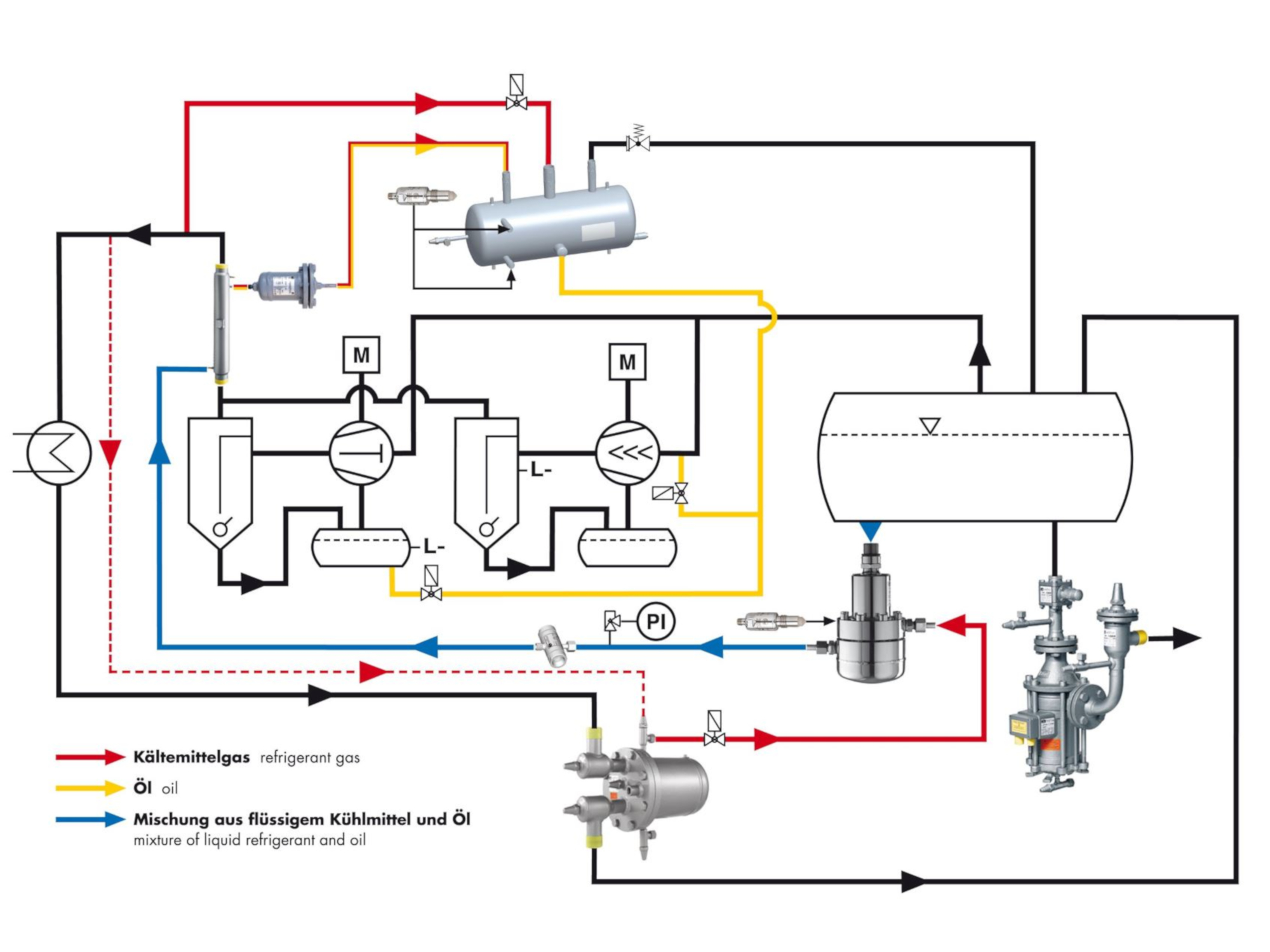

A refrigerant-oil-mixture is collected in the BDP and is dispensed from the low pressure side to the high pressure side of the compressor by means of hotgas. Any remaining liquid refrigerant is evaporating in a heat exchanger (WITT DWR) before being returned to the compressor.

Economical:

Expensive compressor oil is recycled and returned to the system instead of being wasted by manual drainage and disposal, which is costly in terms of labour, environmental health and safety considerations. Frequent automatic oil draining will keep the surface of heat exchangers free of oil and as such increase heat transfer and overall system efficiency

Easy handling:

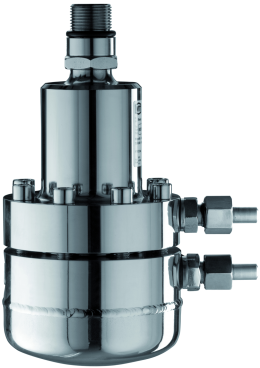

Our standardised solution is an enhancement of the well established BDP, bringing a housing that can be opened and a higher design pressure of 40 bars, which makes it suitable for a broader range of applications. Moreover, several control options can be realised.

TECHNICAL DETAILS

	Diameter [mm]	Height [mm]	Content [l]	Delivery volume [l]	PN max [bar]	material
BDP2-03	140	286	0.6	0.3	40	stainless steel
BDP2-14	140	384	1.7	1.4	40	stainless steel
BDP2-38	140	562	4.1	3.8	40	stainless steel

SPECIFICATIONS

The BDP includes as standard

a threaded connection G1 "for the refrigerant / oil inlet
a socket with internal thread ½ "to connect an oil sensor
a welding connection Ø 13 mm for hot gas
and a welding connection Ø 13 mm for the refrigerant / oil discharge including integrated non-return valve for differential pressures up to 3 bar (optionally also available for 1 bar differential pressure).

Accessories

stop valve EA32/G1“ – I or II (steel) or EA40/G 1“ – I or II (stainless steel)
Threaded connection G1" (steel) or G1"-VA (stainless steel)( valve connection for other brands)
Check valve for a differential pressure of 1 bar (as replacement for the integrated standard check valve)
Adapter with gas equalization line (stainless steel), i.e. for connecting to a stand pipe
WITT regulating valve EE3 or EE6
WITT heat exchanger DWR
WITT oil filter OF-G1 /4“
Oil level sensor
Flow sight glass

Are you interested in an BDP2 barrel dosing pump?

If so, just tell us the

refrigerant you use
the refrigeration capacity of the plant and
the evaporation and condensation temperature.

APPLICATIONS
