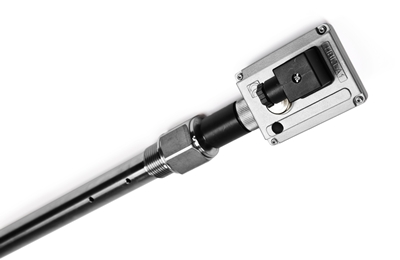

HBLT capacitive liquid level transmitters are used to measure liquid levels in refrigerant vessels.
The HBLT transmits an active 4-20 mA signal which is proportional to the liquid level.
4 mA when the transmitter does not register liquid and 20 mA when the entire transmitter is surrounded by liquid
The 4-20 mA signal from HBLT can be used in conjunction with a controller e.g HBLT-C1 to control the liquid level.
 |
Proven and reliable design with process signal output of 4-20 mA. |
|
Split design makes it easy install and make diagnostic. The electronic parts can be easily disconnected with 2 small screws. |
|
Simple calibration function and the possibility to reduce the effect of liquid peaks. |
|
Designed for the industrial refrigeration industry - max pressure up to 100 bar & high protection degree. |
SPECIFICATIONS
| Power supply | |
|---|---|
| Voltage | 24 AC/DC + 10% |
| Max. possible resistance | 500 ohm |

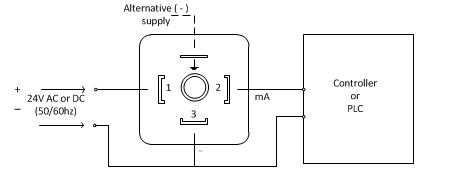

| Plug connection | DIN 43650 - 4 pins |
| Output | |
| Analog output | 4-20 mA |
| Environmental conditions | |
| Ambient temperature | -30...+50°C |
| Refrigerant temperature | -60...+80°C |
| Max. pressure | 100 bar |
| Protection degree | IP65 |
| Vibrations | IEC 68-2-6 (4g) |
| Mechanical specifications | |
| Thread connections | 3/4” NPT & 1" BSP |
| Material - liquid parts | AISI 304 / PTFE |
| Material - electronic parts | Coated aluminium |
| House type | Front |
| Approvals | |
| EMC test | EN 61000-2 |
| Indication | |

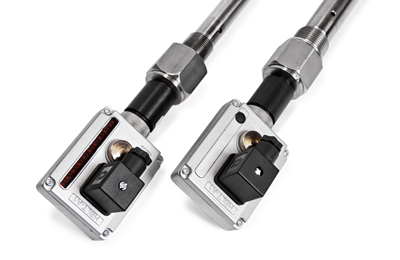

| Bargraph indication | Red LED |
| Configurations | |
| Configuration | Push button |

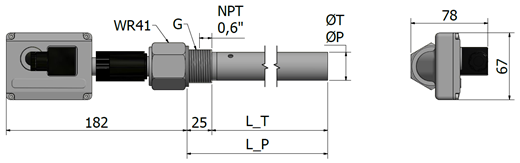

| Length / thread | Ordering code without LED | Ordering code with LED |
|---|---|---|
| 280 mm / 1" BSP | HBLT-A1-2.8 | HBLT-A1B-2.8 |
| 500 mm / 1" BSP | HBLT-A1-5 | HBLT-A1B-5 |
| 800 mm / 1" BSP | HBLT-A1-8 | HBLT-A1B-8 |
| 1000 mm / 1" BSP | HBLT-A1-10 | HBLT-A1B-10 |
| 1200 mm / 1" BSP | HBLT-A1-12 | HBLT-A1B-12 |
| 1500 mm / 1" BSP | HBLT-A1-15 | HBLT-A1B-15 |
| 1700 mm / 1" BSP | HBLT-A1-17 | HBLT-A1B-17 |
| 2200 mm / 1" BSP | HBLT-A1-22 | HBLT-A1B-22 |
| 3000 mm / 1" BSP | HBLT-A1-30 | HBLT-A1B-30 |
| 6" / 3/4 NPT | HBLT-A1-6U | HBLT-A1B-6U |
| 8" / 3/4 NPT | HBLT-A1-8U | HBLT-A1B-8U |
| 10" / 3/4 NPT | HBLT-A1-10U | HBLT-A1B-10U |
| 12" / 3/4 NPT | HBLT-A1-12U | HBLT-A1B-12U |
| 15,3" / 3/4 NPT | HBLT-A1-15.3U | HBLT-A1B-15.3U |
| 19,2" / 3/4 NPT | HBLT-A1-19.2U | HBLT-A1B-19.2U |
| 23,1" / 3/4 NPT | HBLT-A1-23.1U | HBLT-A1B-23.1U |
| 30" / 3/4 NPT | HBLT-A1-30U | HBLT-A1B-30U |
| 35" / 3/4 NPT | HBLT-A1-35U | HBLT-A1B-35U |
| 45" / 3/4 NPT | HBLT-A1-45U | HBLT-A1B-45U |
| 50" / 3/4 NPT | HBLT-A1-50U | HBLT-A1B-50U |
| 55" / 3/4 NPT | HBLT-A1-55U | HBLT-A1B-55U |
| 65" / 3/4 NPT | HBLT-A1-65U | HBLT-A1B-65U |
| 85" / 3/4 NPT | HBLT-A1-85U | HBLT-A1B-85U |
| 105" / 3/4 NPT | HBLT-A1-105U | HBLT-A1B-105U |
| 120" / 3/4 NPT | HBLT-A1-120U | HBLT-A1B-120U |
| Electronic parts | HBLT-A1-EL | HBLT-A1B-EL |
