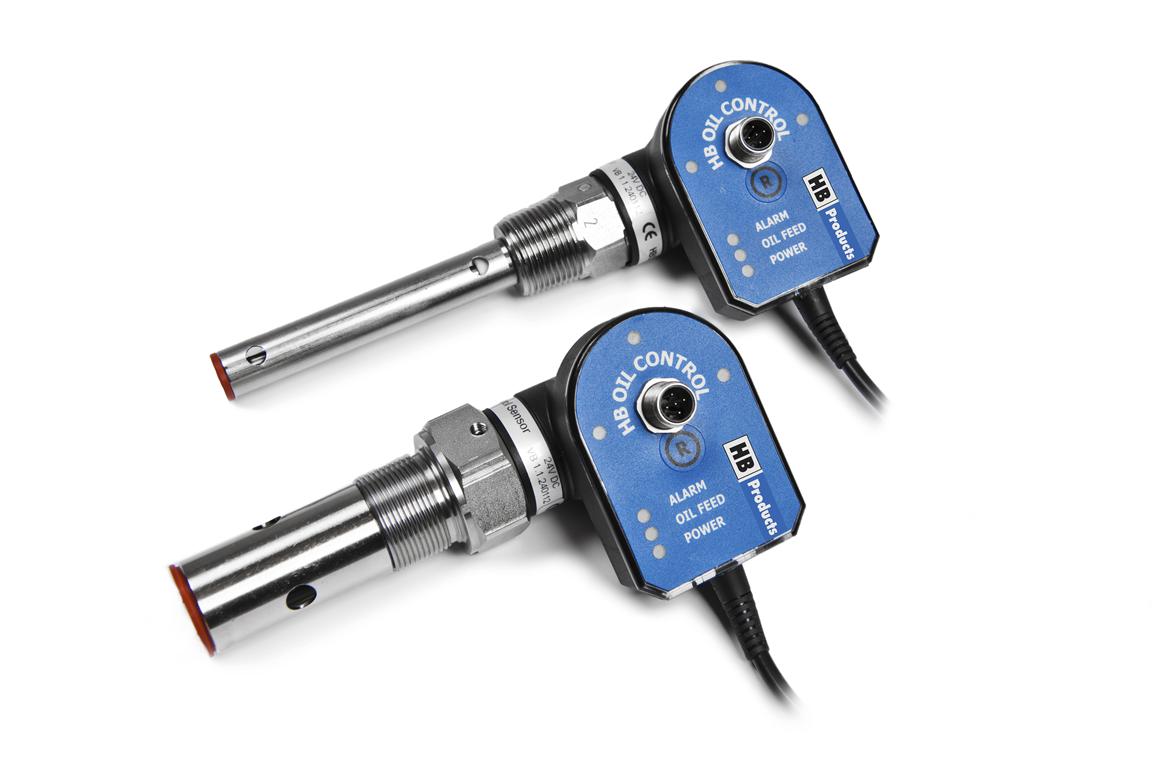

HBOC is an intelligent sensor with a built-in microprocessor. It is designed to detect and control oil levels in oil separators and compressors.
Apart from the sensor function, it also has a built-in controller.
The controller can be setup with all the parameters that are necessary to directly regulate a solenoid valve for oil level control.
 |
Complete and simple design for automatic oil management. A cost effective solution. |
|
Simple installation and configuration with PC. Timer and alarm functions are all programmable. |
|
LED indication of oil level, alarm and power supply. Alarm output to central panel. |
|
Sensor design for pressure up to 150 bar |
|
Split design which makes it easy to install and makes diagnostic on. The electronic part can be easily disconnected with 2 small screws. |
SPECIFICATIONS

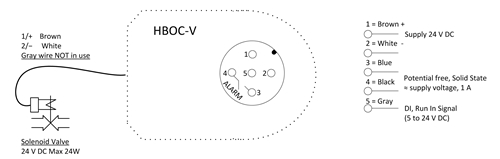

| Power supply | |
|---|---|
| Voltage | 24 AC/DC + 10% |
| Current consumption | Max 30 mA |
| Plug connection | M12, 5 pins |
| Direct valve control | |
| Transistor output | Solid State |
| Contact function | NC/NO |
| Potential free output | Max 1 A (24W) |
| Cable length | 3 m (118”) |
| Cable dimensions | 2 x 0,75 mm2 |
| Environmental conditions | |
| Ambient temperaturer | -30...50°C |
| Oil temperatur | 0... 80°C |
| Max pressure | 150 bar |
| Protection degree | IP65 |
| Vibrations | IEC 68-2-6 (4g) |
| Mechanical specifications | |
| Thread connection | 1/2", 3/4” & 1 1/8" |
| Material - liquid parts | AISI 304 / PTFE |
| Material - electronic parts | Nylon 6 (PA) |
| Dimensions | 190 x 54 x 72 mm |
| Weight | 600 g |
| Type | Angle housing |
| Approvals | |
| EMC test | EN 61000-2 |
| Indication | |
| LED indication | LED (green, yellow & red) |
| Indication | |
| Configuration | With PC tool |
| Accessories | |
| USB programming cable | HBxC-USB |
| House design | Thread type | Ordering code |
|---|---|---|
| Angle | 1/2" NPT | HBOC/C-1 |
| Angle | 3/4" NPT | HBOC/C-2 |
| Angle | 1 1/8 UNEF | HBOC/C-7 |
| Electronic part for HBOC/C | HBOC/C-EL |
