HBEJ-MK2 is an oil ejector for automatic oil drainage for industrial ammonia refrigeration systems. The ejector is used together with an HBOR oil pot controller and 2 magnetic valves. The ejector uses hot gas as propellant and is designed for a hot gas pressure of max 120 bar. The ejector is made in stainless steel and has compression fittings as well as a thread connection.


The ejector is a simple economical solution for transporting oil from point A to point B without worn parts and with a low energy consumption.

TECHNICAL DETAILS

  Ejects 0.1 litres of oil per minute.
Compression fitting design for easy installation – Oil in: Ø10 mm / Oil out: Ø10 mm.
No movable parts – limited servicing

SPECIFICATIONS

Drawing

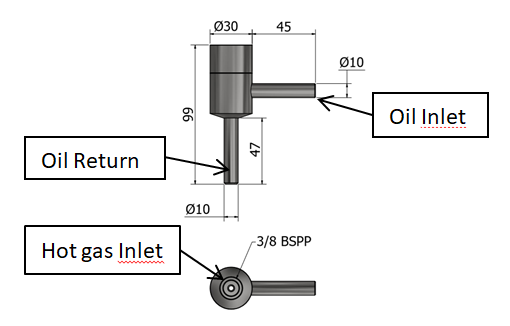

HBEJ MK2 MECHANICAL DIMENSIONS





Environmental conditions
Ambient temperature -30°C...+50°C
Liquid temperature -60°C...+80°C
Max pressure Max 120 bar
Mechanical specifications
Hot gas connection 3/8” BSPP
Oil return line 10 mm
Oil inlet 10 mm
Material - liquid parts AISI304

APPLICATIONS

APPLICATIONS HBEJ MK2

System design (NH3-system)

DISCLAIMER

Oil capacity Connection Ordering code
Oil ejector (0,1 l/min) 3/8” BSPP / Ø10 / Ø10 HBEJ-0.05-G3/8-MK2
